Ceiling Mount Motorised Stand

Description

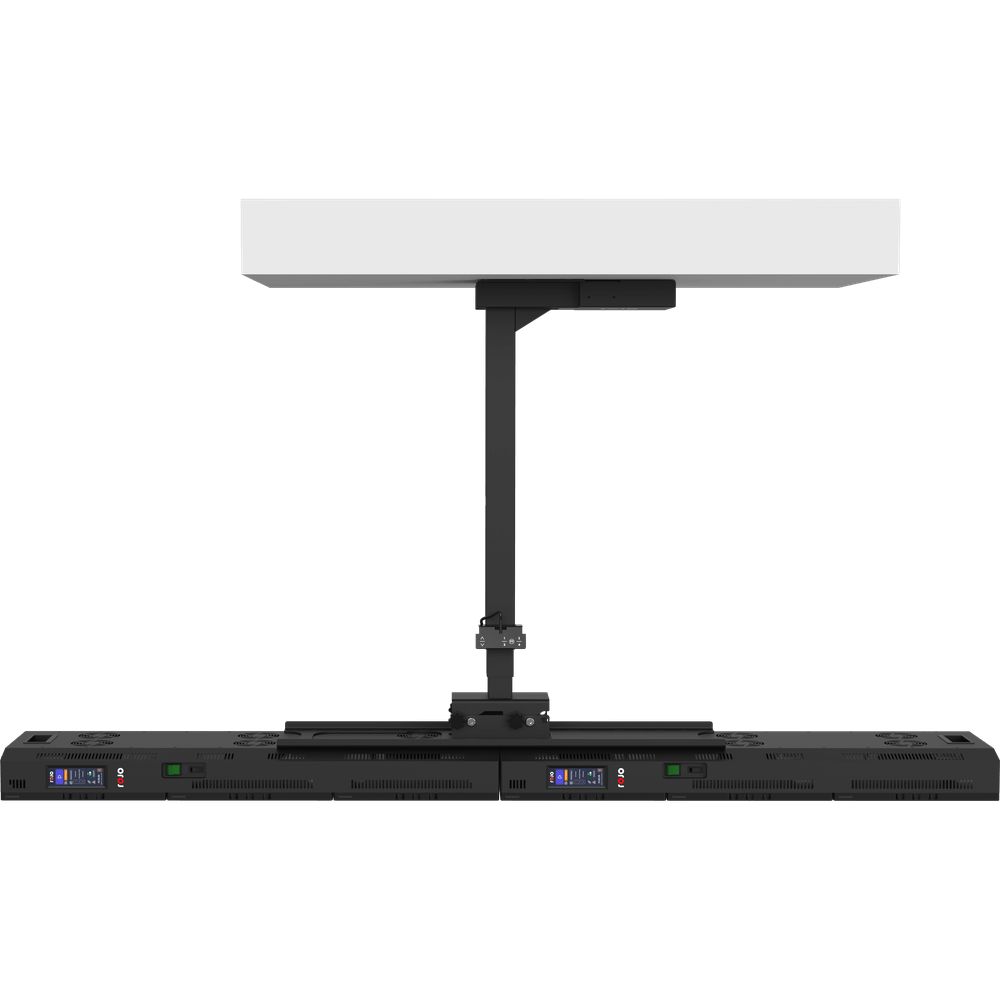

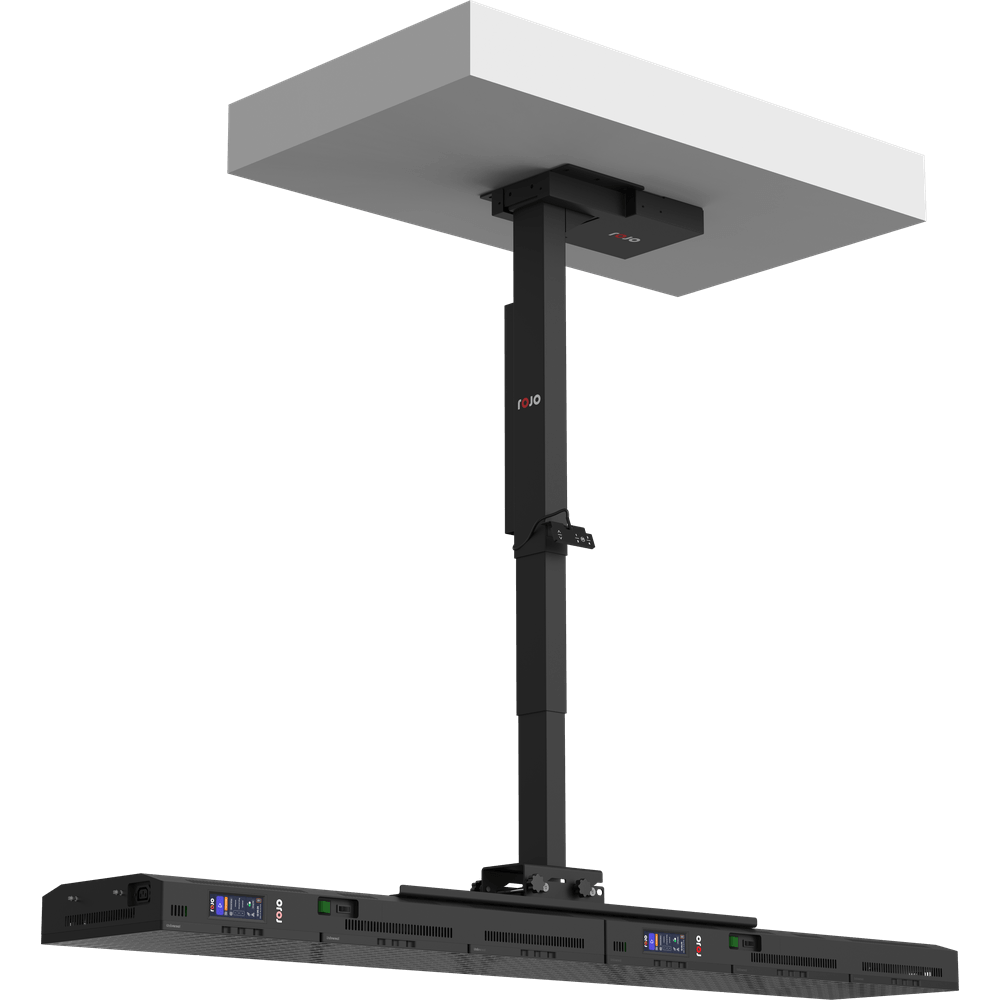

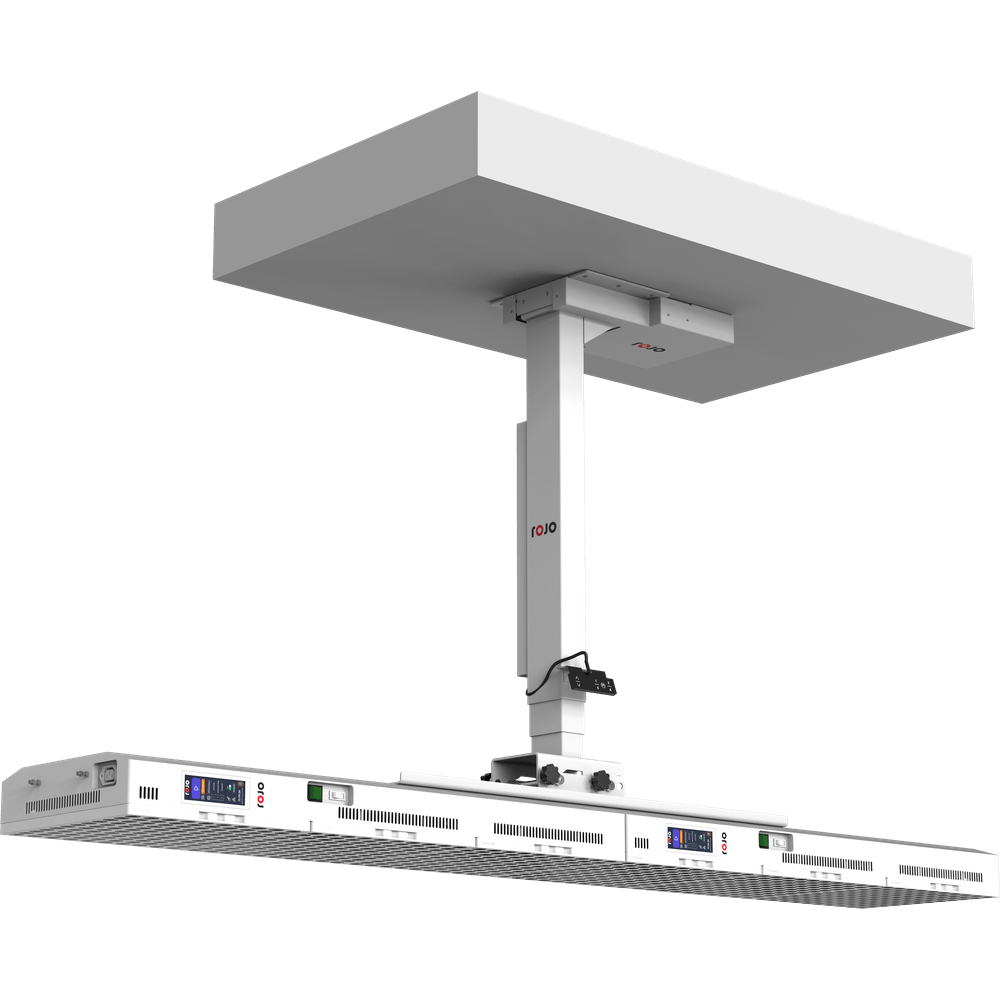

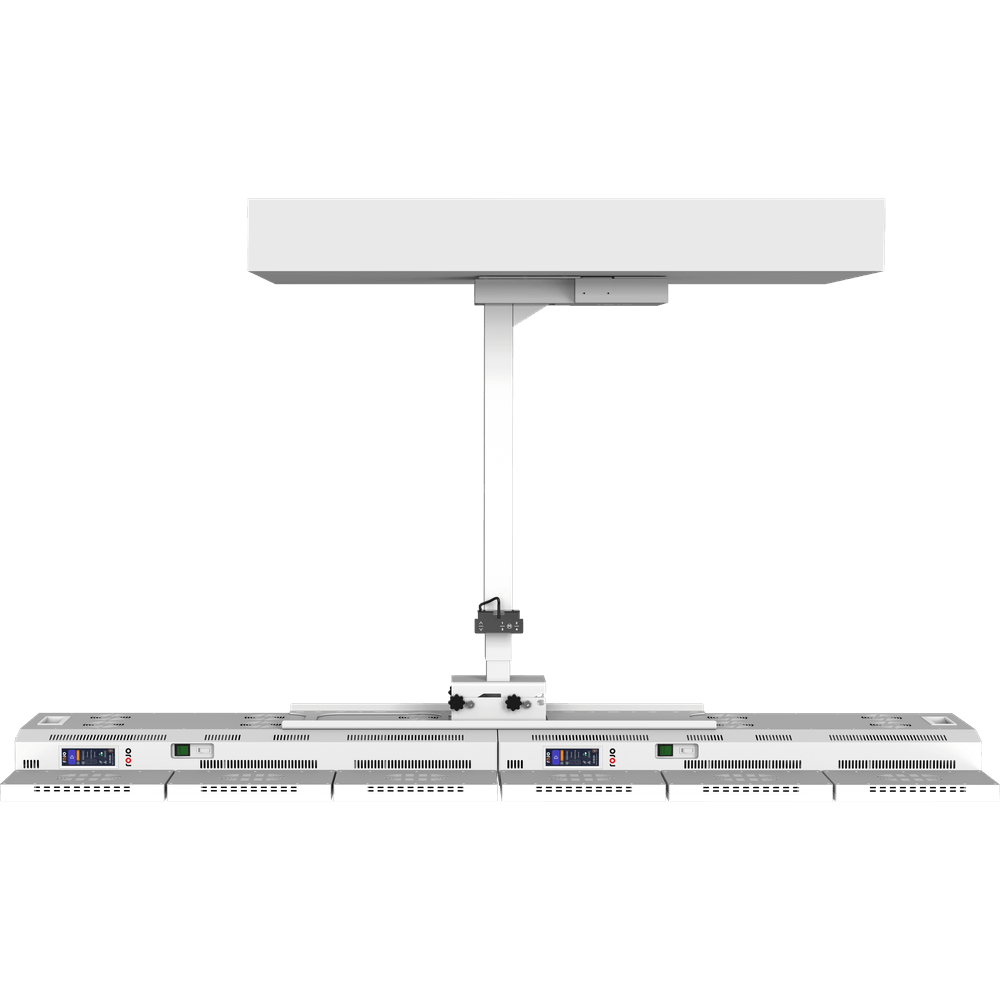

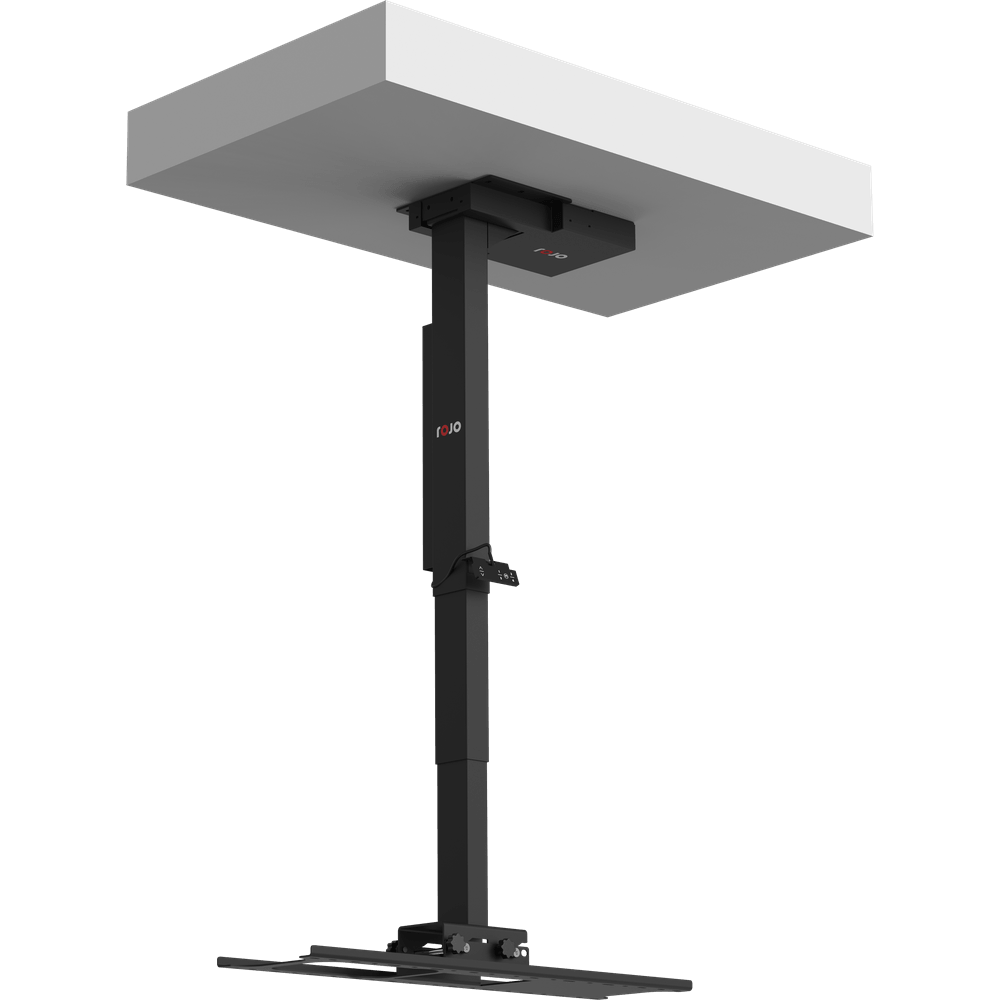

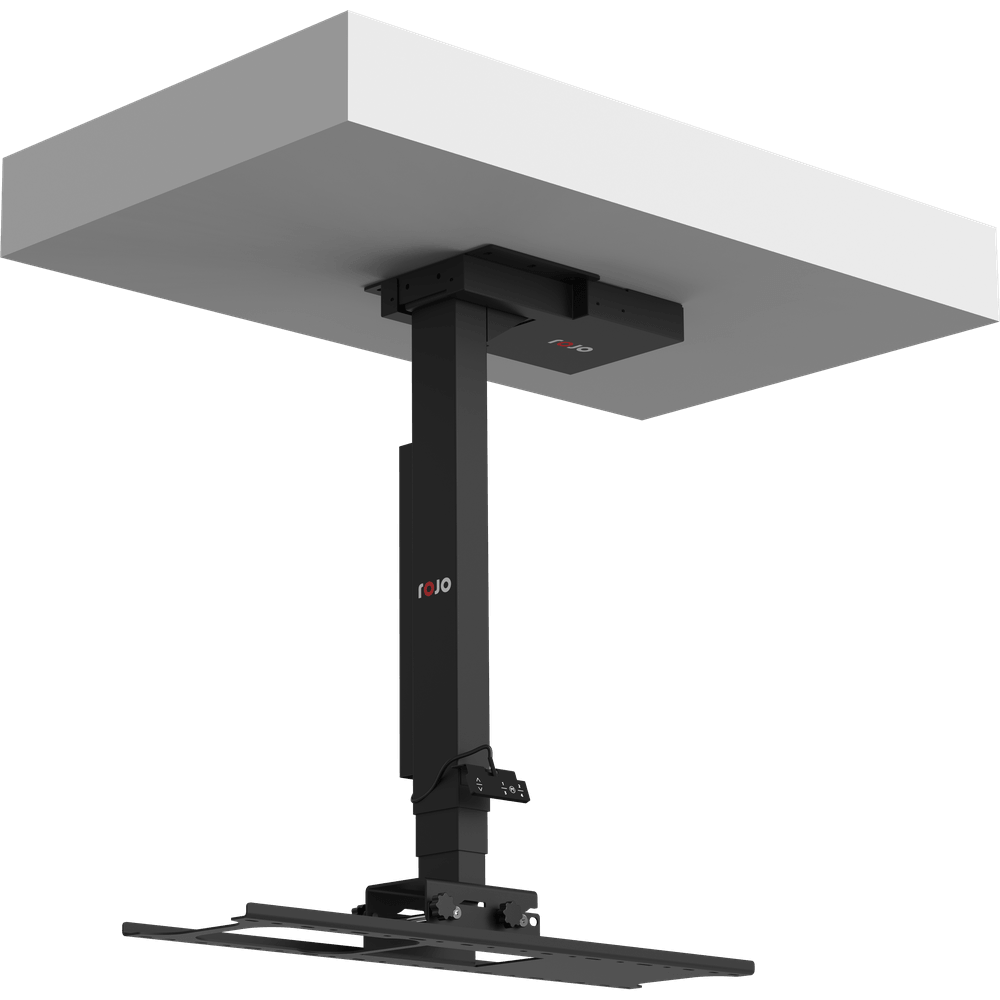

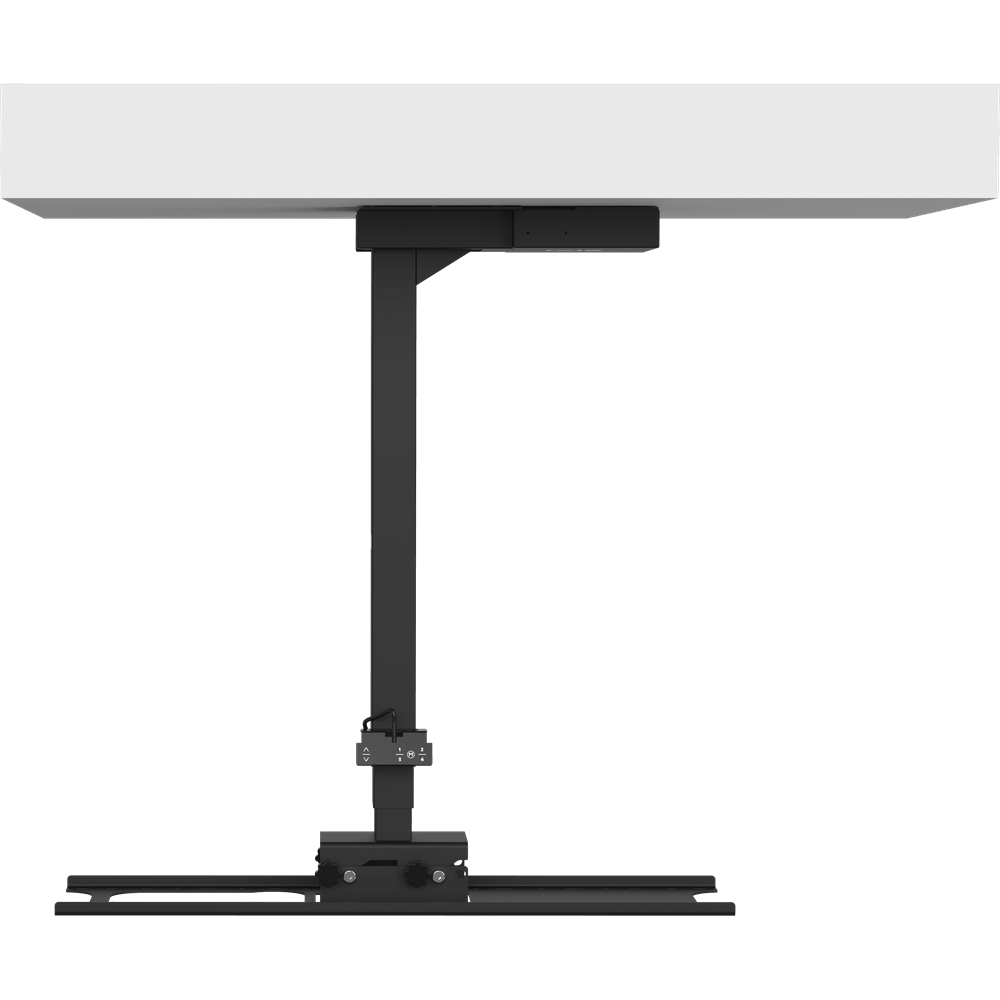

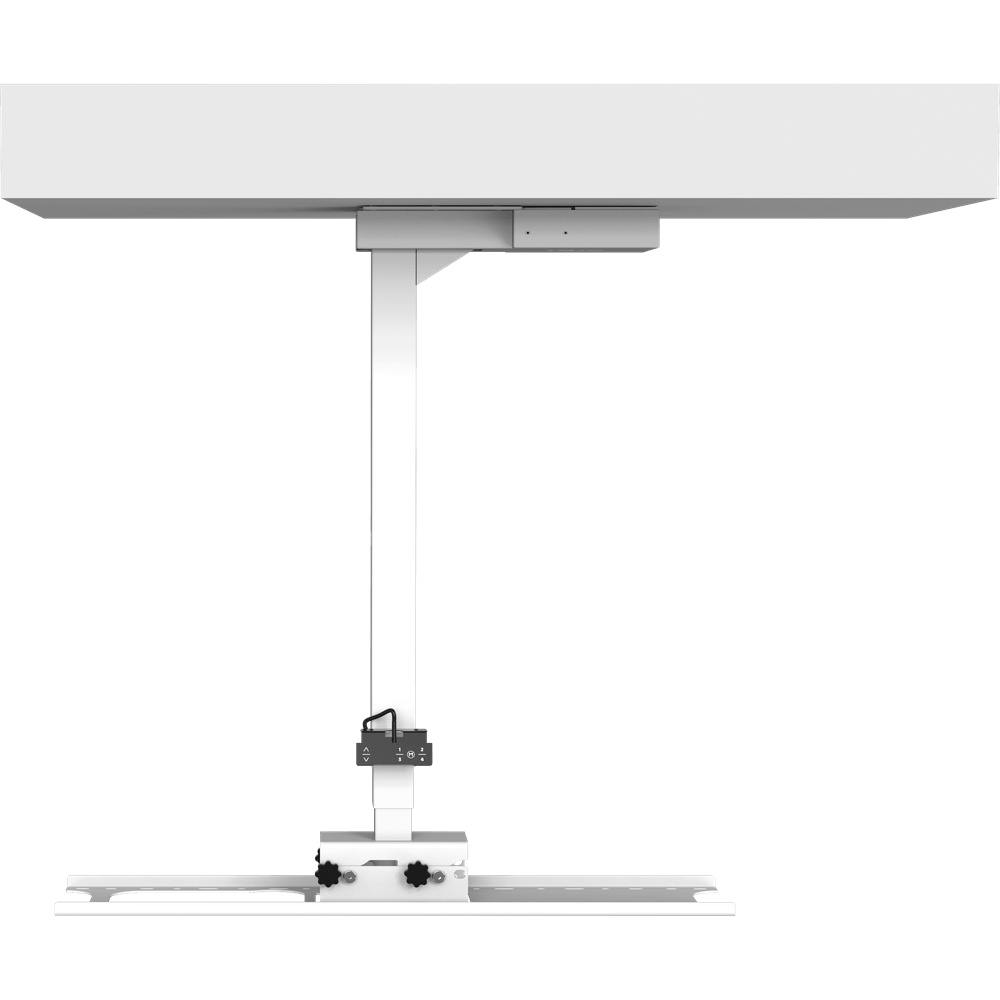

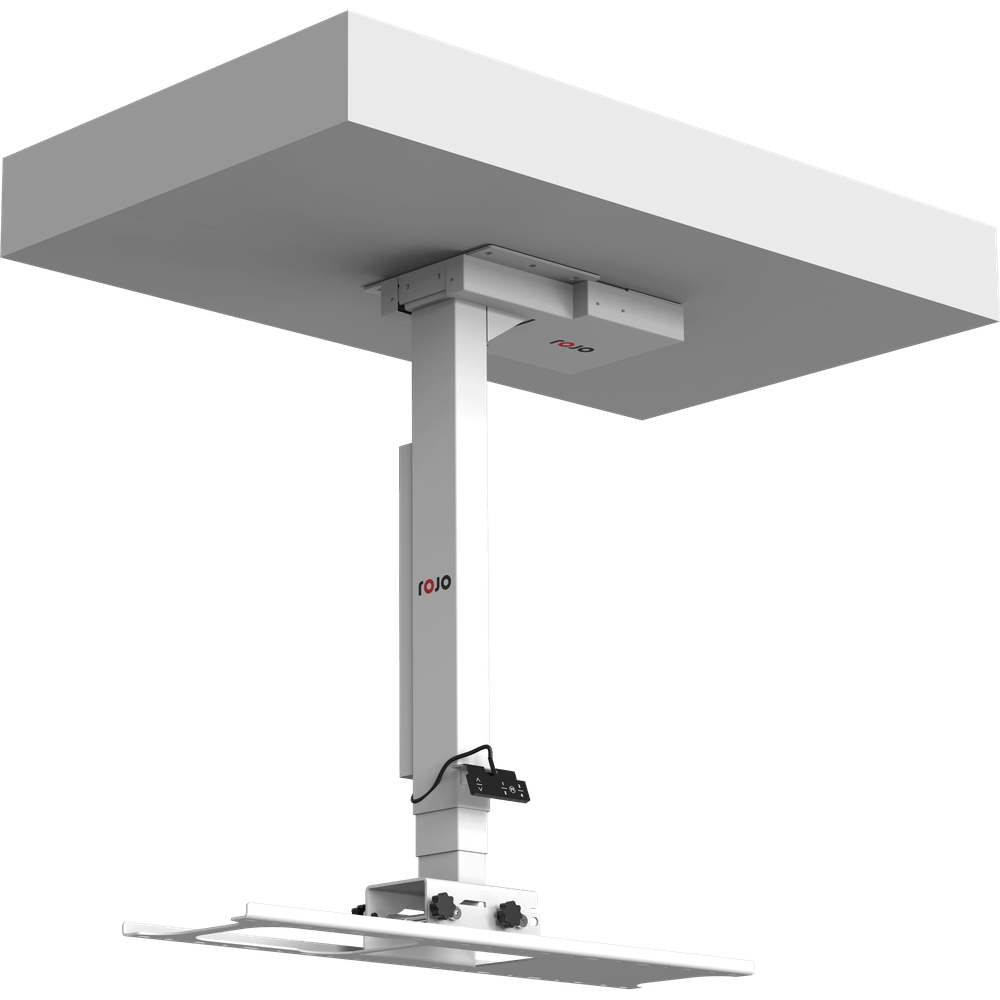

The mount fixes to the ceiling using six expansion bolts and a supplied drilling template, with a motorised lift column (820mm of travel) that raises and lowers the attached mounting plate and panel(s) on command from the touchscreen or paired remote control.

Installation requires a professional builder and/or structural engineer to assess the ceiling’s load-bearing capacity before mounting — the manual specifies the mounting position must support a bearing load exceeding 80kg.

Choose This Stand If You

• Run a gym, wellness centre, physical therapy office, or clinic and want a fixed, ceiling-mounted treatment station
• Want motorised, touch-button height control instead of a manual crank
• Are running a larger multi-panel configuration and want it out of the way of floor traffic when not adjusted
• Want programmable memory height settings so recurring positions can be recalled instantly

Key Features

• Motorised height adjustment via touchscreen or remote control
• 4 programmable memory height settings for instant recall
• Built-in power sockets keep cables hidden for a clean, tidy setup
• Heavy-duty construction rated to a 60kg/132lbs load
• Supports a wide range of Refine and Switch panel configurations (see Specifications)
• Designed for both home and commercial installations

Specifications

• Maximum rated load: 60kg/132lbs (mount, mounting plate, and panel(s) combined)
• Lift travel: 820mm | Base height: 780mm
• Input voltage: 110–230VAC | Output: 24VDC
• Working environment: 5–40°C | Duty cycle: 5 minutes operation, 18 minutes rest

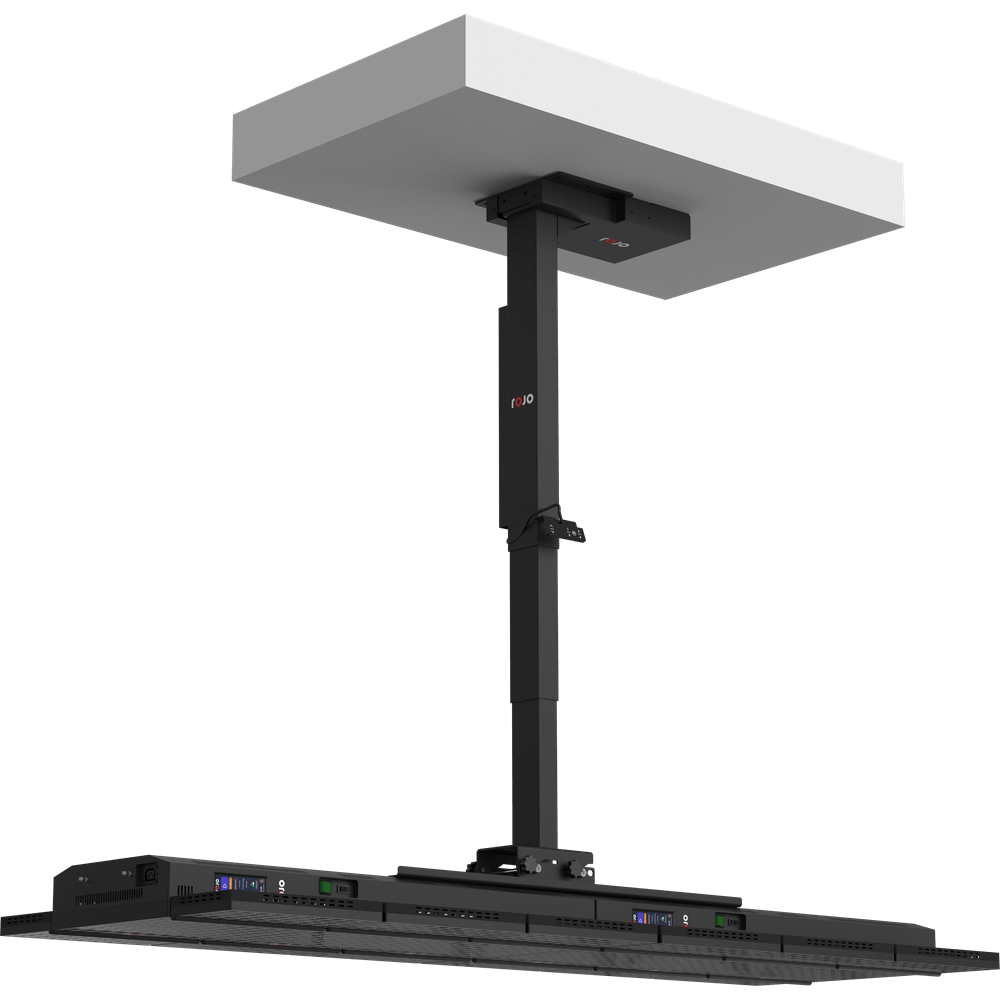

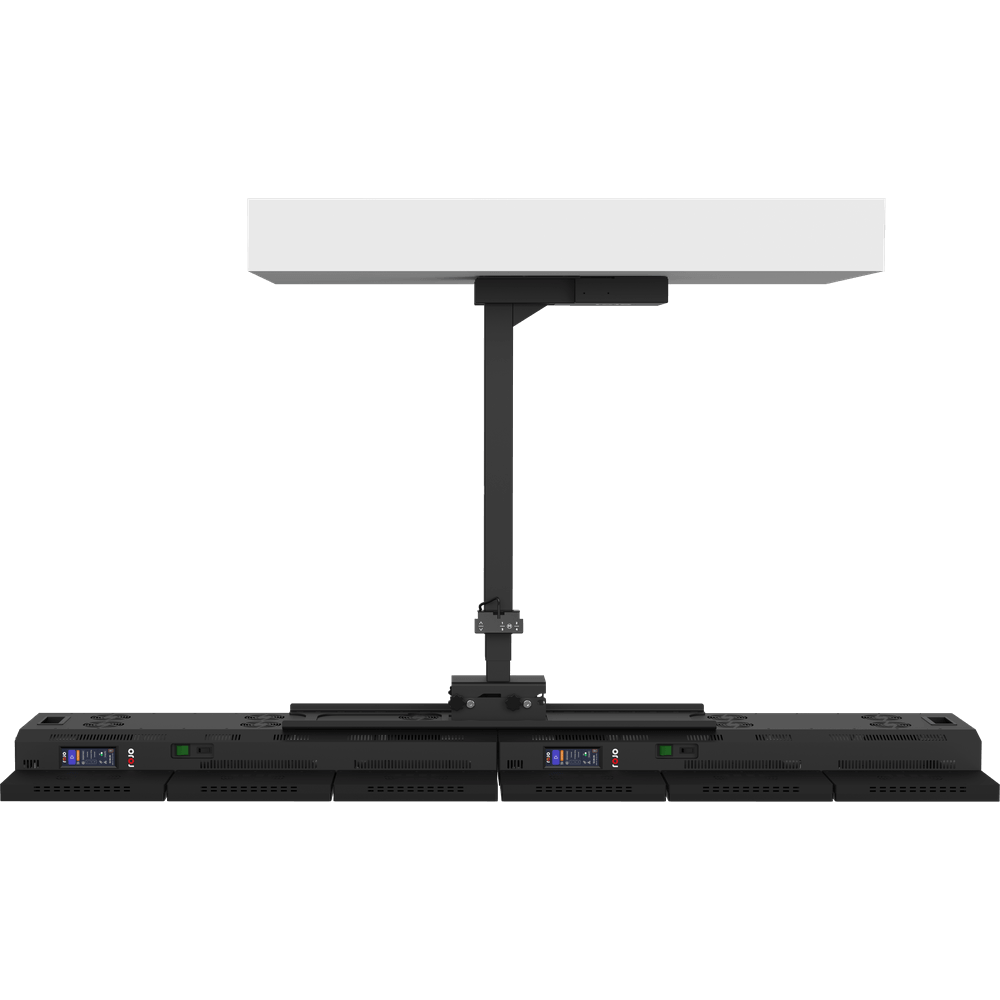

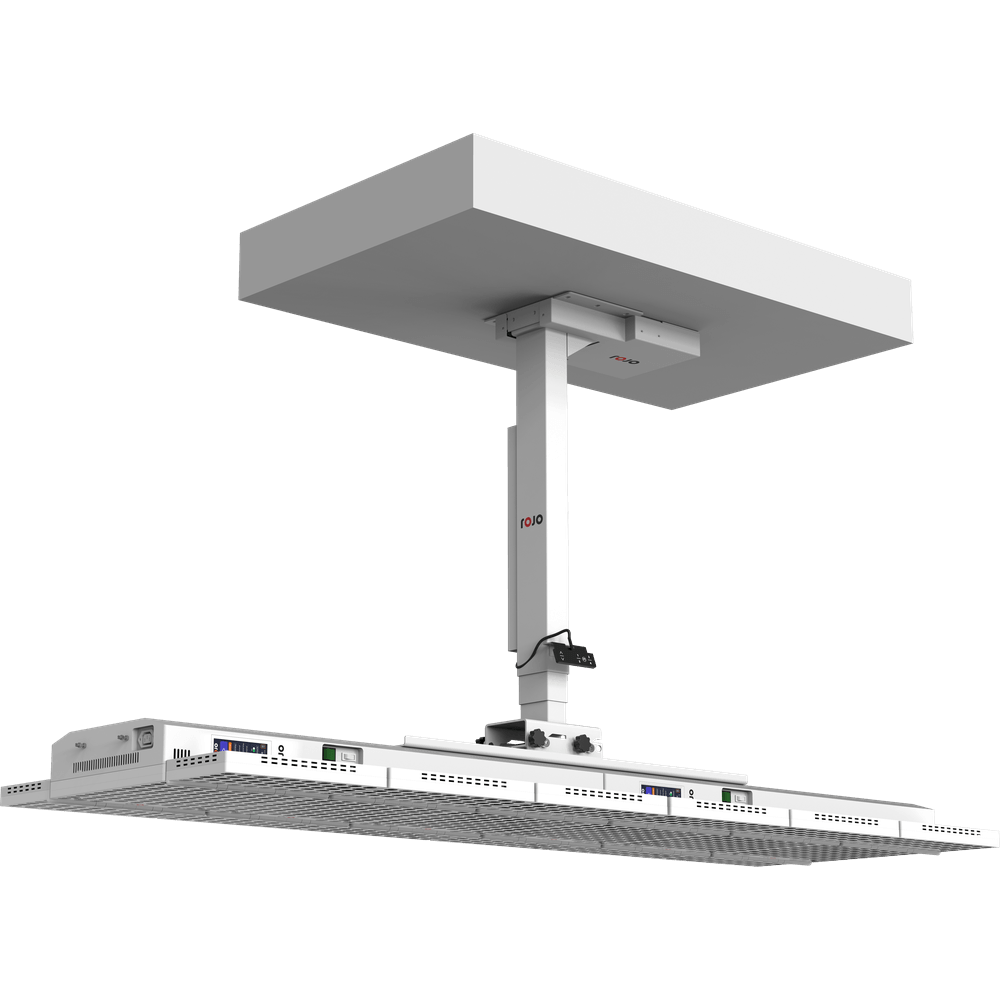

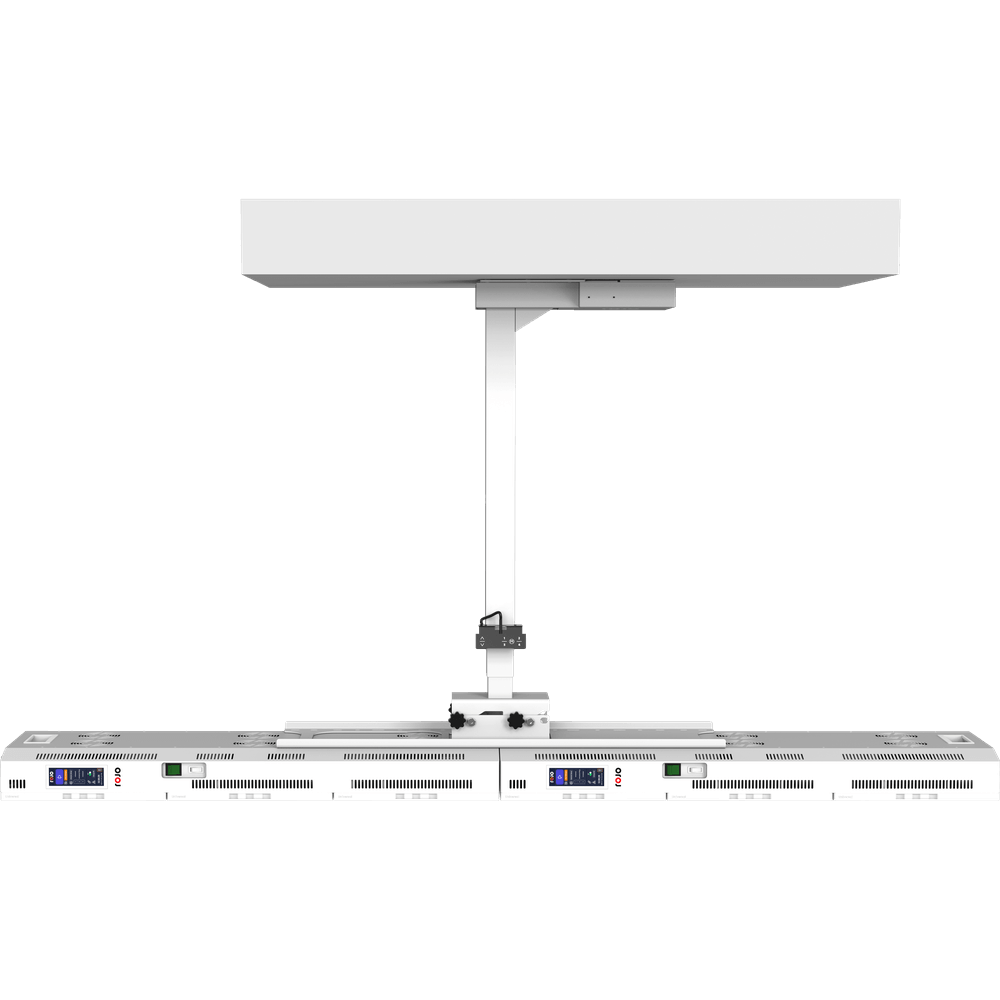

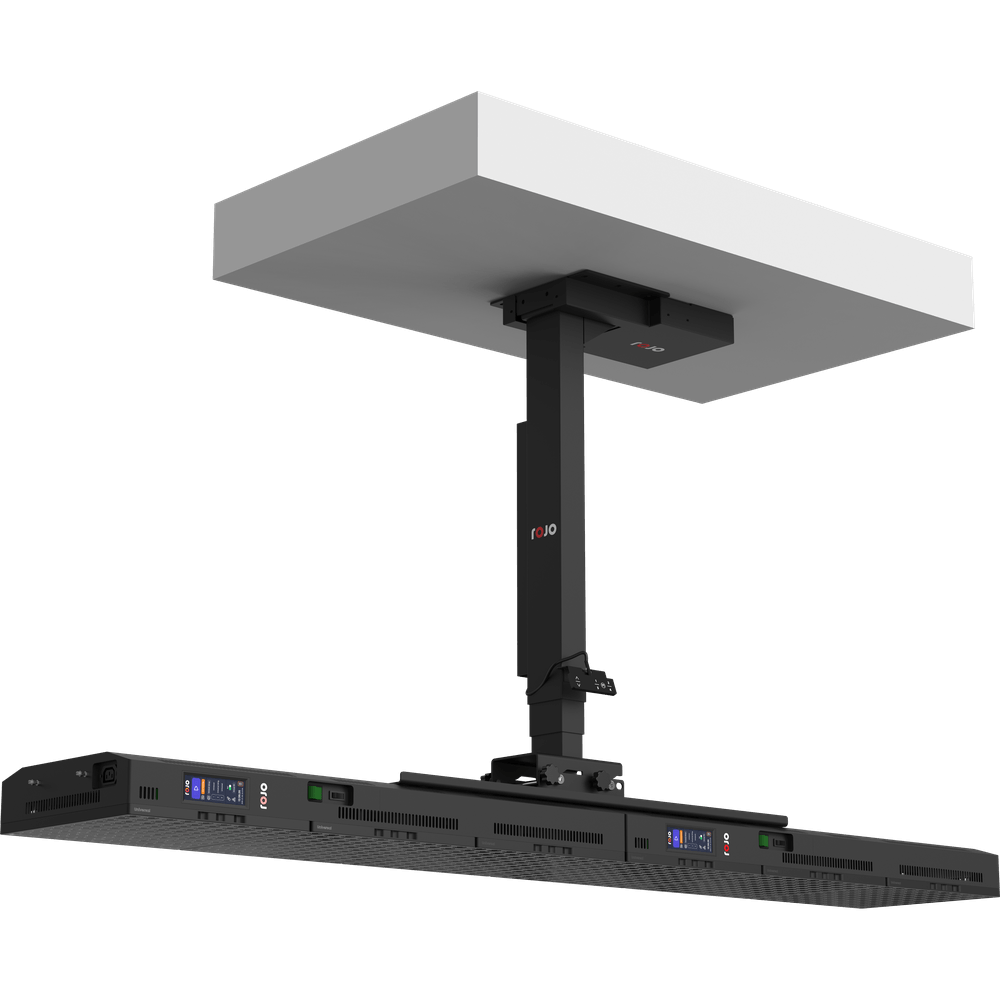

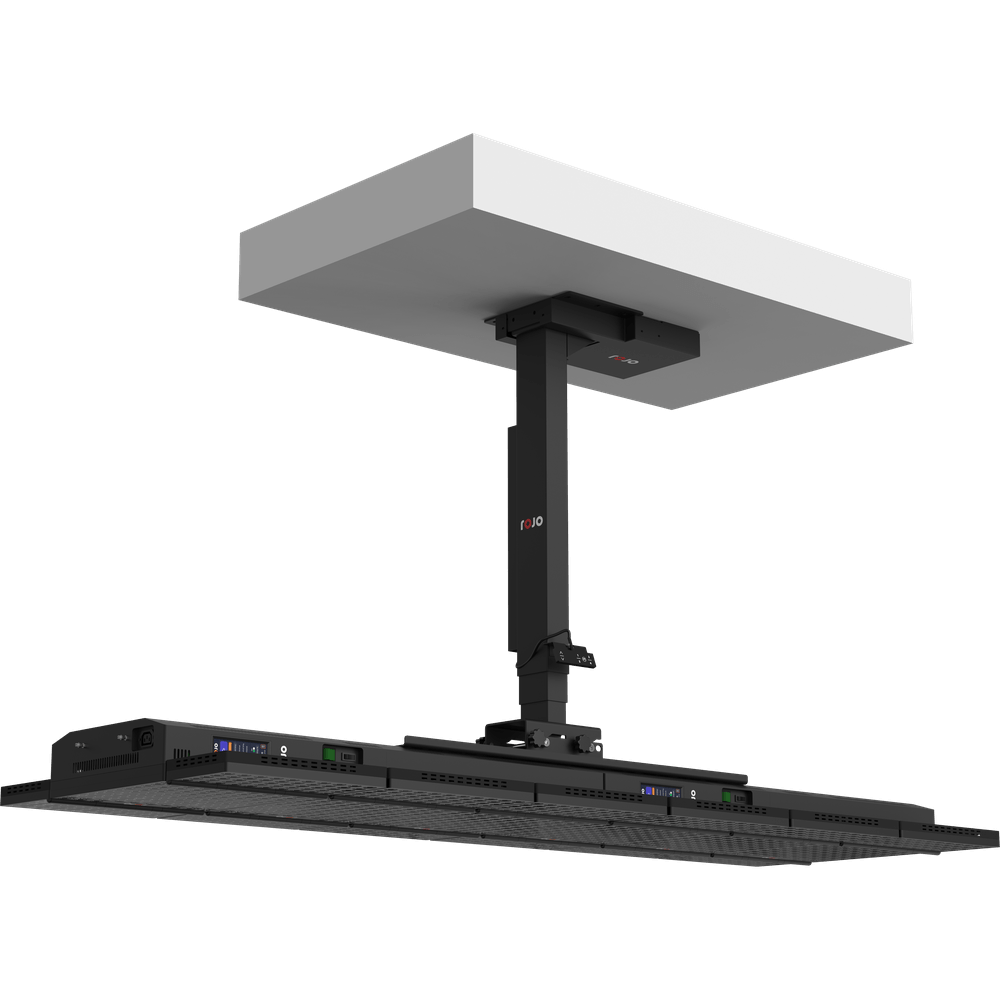

• Compatible configurations: 2x Switch M3 (flat or wing modules), 2x Refine 900, 1x Refine 1800, 4x Refine 900, 2x Refine 1800, or 1x Refine 3600

Ideal For

Gyms, wellness centres, physical therapy offices, and clinics — plus advanced at-home users — wanting a fixed, motorised, ceiling-mounted stand for larger Refine or Switch panel configurations, installed by a professional.
