Switch Classic Module (Wing)

Description

The essential red light module, dedicated to Rojo’s primary Classic wavelengths: a 3-wavelength blend with a high-dose near-infrared (850nm) emphasis (50% of output), alongside the two classic red wavelengths (630/660nm) for skin-focused use.

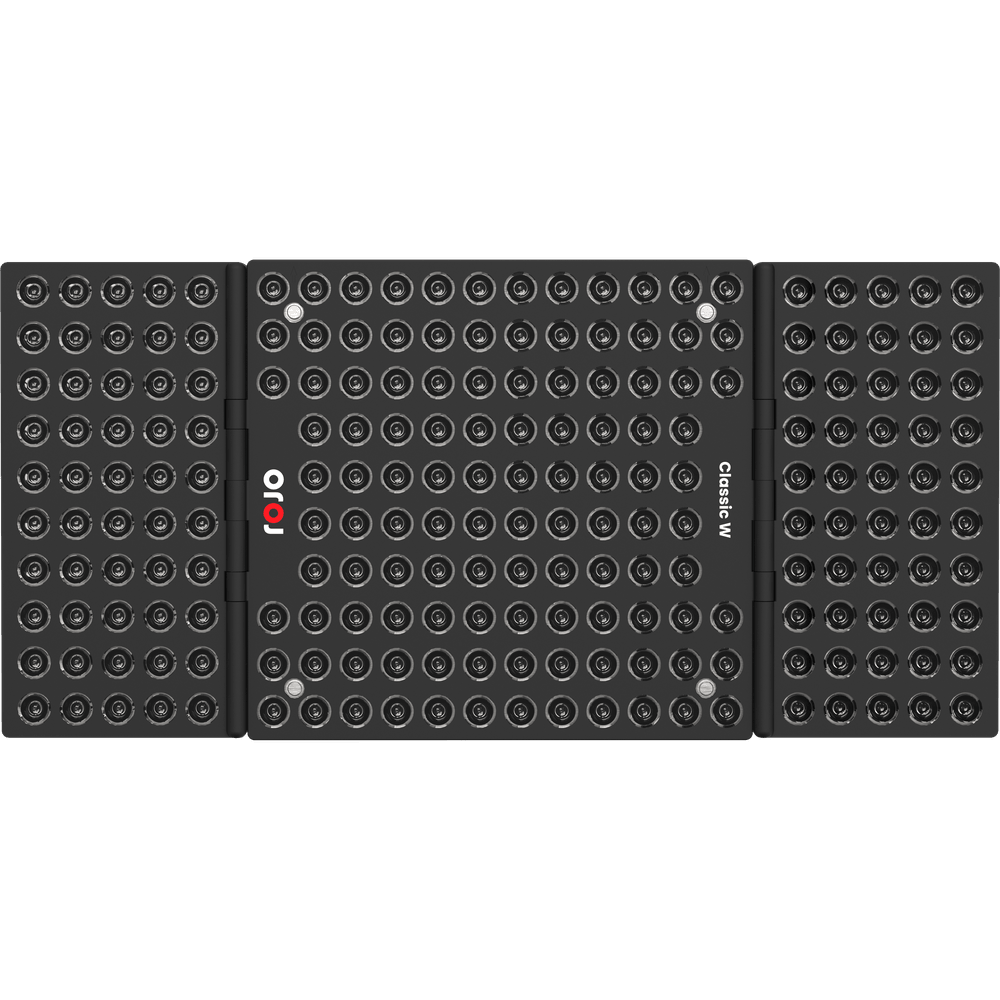

The wing-shaped design extends outward from the hub for wider surface area coverage, reducing the need to reposition during a session. It connects to any bay of any Switch Hub, adding 212 LEDs across the module’s wavelength range.

Choose This Module If You

• Want the essential red light module, dedicated to Rojo’s primary Classic wavelengths: a 3-wavelength blend with a high-dose near-infrared (850nm) emphasis (50% of output), alongside the two classic red wavelengths (630/660nm) for skin-focused use.
• Are focused on: a simple, non-gimmicky 3-wavelength mix with meaningful allocation to each band
• Are focused on: 50% of output allocated to 850nm for a stronger near-infrared focus
• Want wider surface area coverage and fewer repositions than the Flat Module offers

Key Features

• Wavelengths: 630, 660, 850nm (2 Red / 1 NIR)
• 9 Smart Modes: Inflammation, Skin Repair, Muscle Recovery, Collagen Repair, Wound Heal, Nerve, Bone and Joint, Sunrise, Sleep
• Connects magnetically onto any Switch Hub and is secured with a small captive screw at each of the 4 corners (hand or tool-turnable) — quick to fit, though not fully tool-free like the Flat module

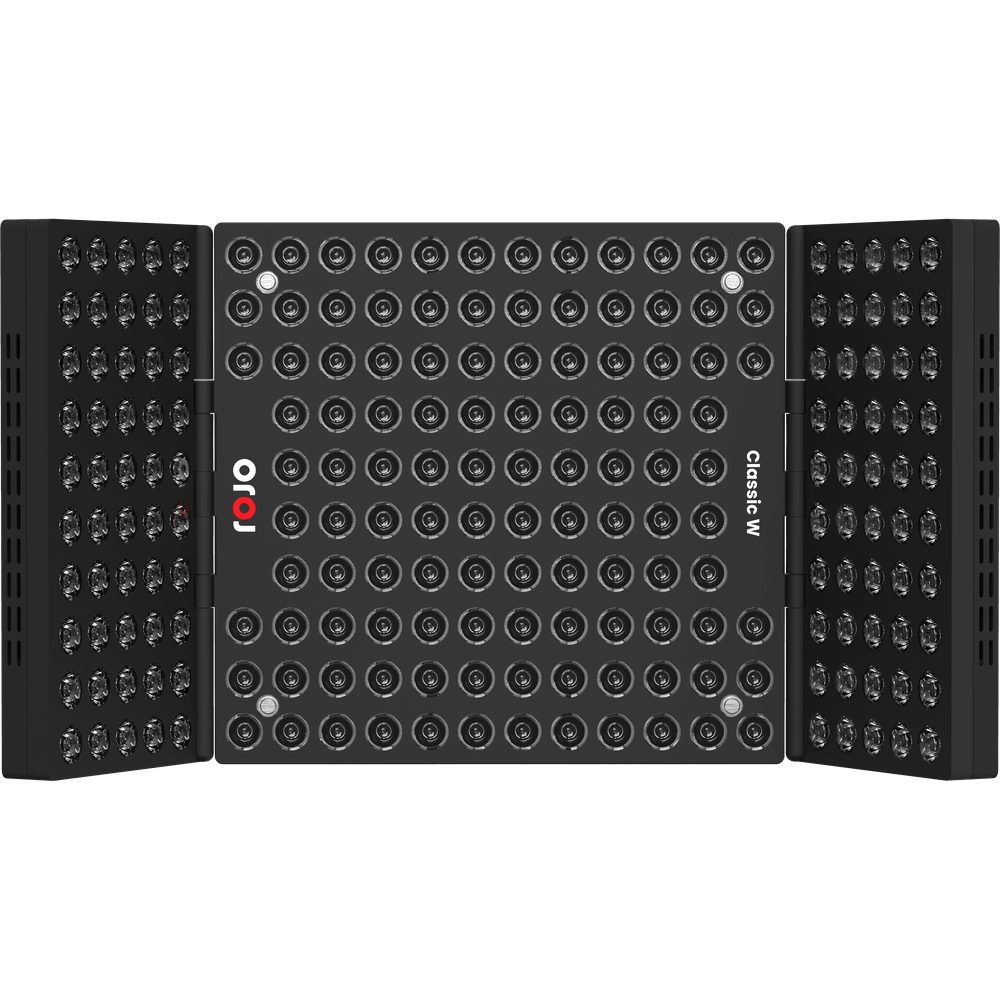

• Wing-shaped design extends coverage for larger treatment areas, reducing the need to reposition
• A simple, non-gimmicky 3-wavelength mix with meaningful allocation to each band
• 50% of output allocated to 850nm for a stronger near-infrared focus
• Covers skin-level goals with red light, plus deeper-target support with near-infrared

Specifications

• Module Type: Wing
• Compatible Hubs: M1, M2, M3 — single or multi-hub configurations mounted in line vertically (Wing modules cannot be mounted to Switch panel hubs mounted side by side)
• Wavelengths: 630, 660, 850nm (2 Red / 1 NIR)
• LED Count: 212
• Footprint Added to Hub: extends hub width from 35cm to 70cm (M1 Hub + 1 Wing Module = 33 x 70cm total footprint)
• Average Irradiance (full wavelength spectrum): 47 mW/cm² at 6in / 33 mW/cm² at 12in
• Weight: 4.17kg, Dimensions: 38 x 33 x 7cm (folded) / 70 x 33 x 3cm (extended)
• Beam Angle: a combination of 30 and 60 degree lenses, for even light coverage of the treatment area

What’s Included

• Classic Wing Module
• Mounting tool
• Installation and use manual

Ideal For

Spas, beauty clinics, gyms, and at-home users wanting broad, general-purpose red light treatment. Ideal if you want wider surface area coverage and fewer repositions during a session.
