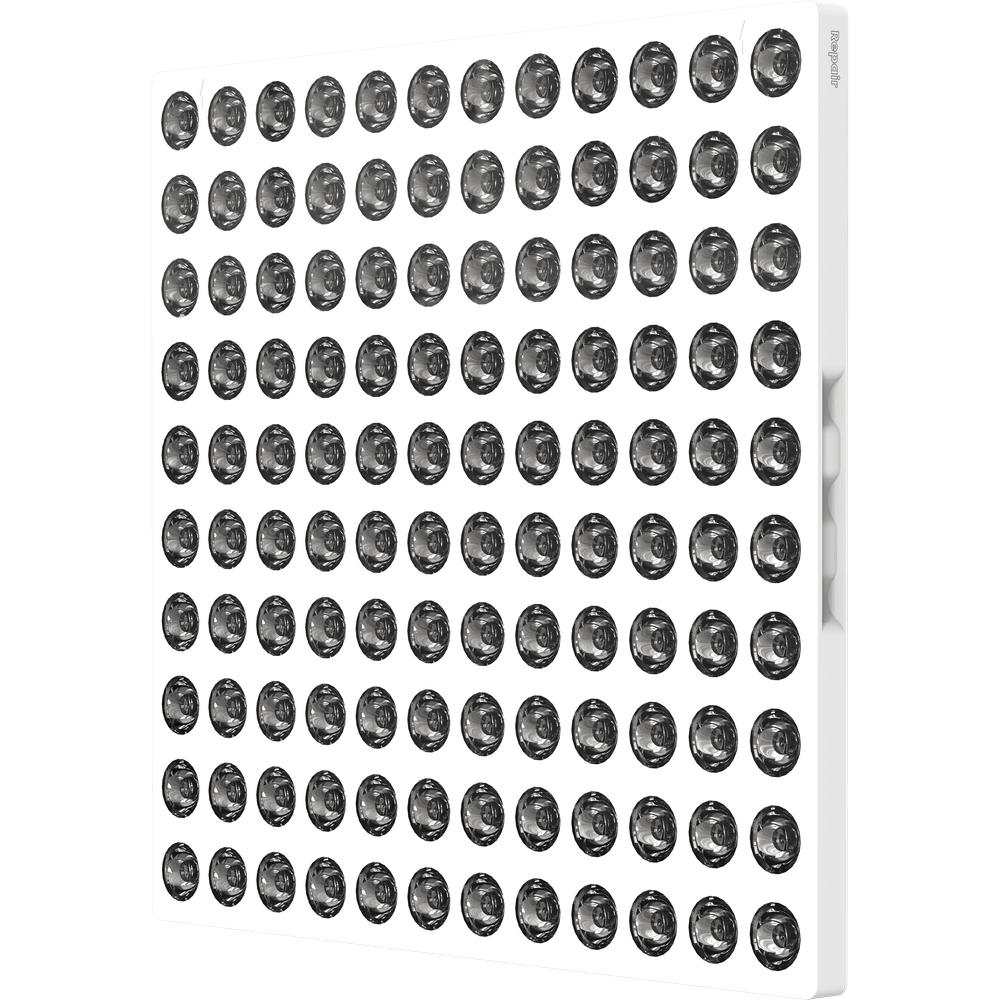

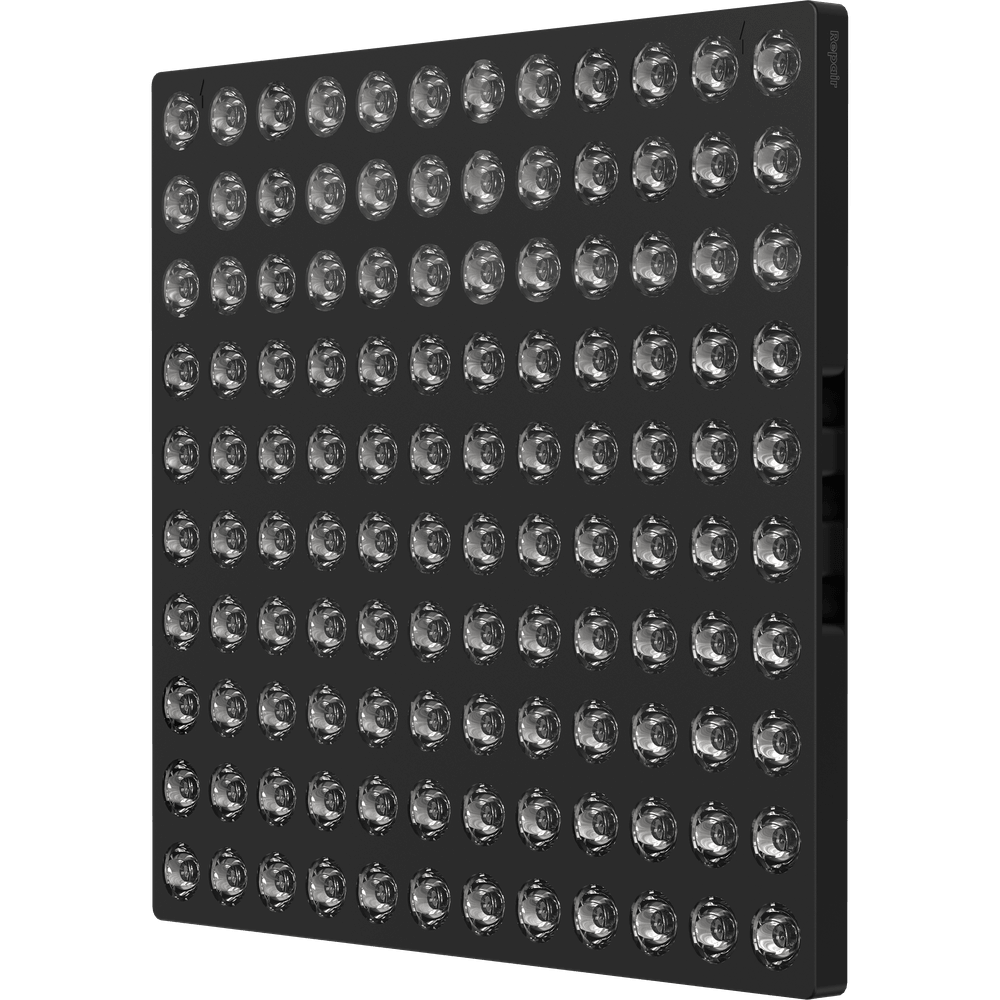

Switch Repair Module (Flat)

Description

One of the primary, most traditionally researched wavelength combinations, for skin repair, collagen production, muscle recovery, inflammation, tissue repair, and joint pain.

It clips magnetically onto any Switch Hub for fast, tool-free fitting and removal, adding 120 LEDs across the module’s wavelength range in a low-profile, flush-fit design.

Choose This Module If You

• Want one of the primary, most traditionally researched wavelength combinations, for skin repair, collagen production, muscle recovery, inflammation, tissue repair, and joint pain.
• Are focused on: suitable for all skin types
• Are focused on: clinically proven wavelength combination
• Want a flush, low-profile module that adds no extra footprint to your Switch Hub

Key Features

• Wavelengths: 630, 660, 830nm (2 Red / 1 NIR)
• 4 Smart Modes: Skin Repair, Sunrise, Wound Heal, Joint Repair
• Magnetically clips onto any Switch Hub for fast, tool-free fitting and removal
• Flush, low-profile fit — doesn’t add to the hub’s footprint
• Suitable for all skin types
• Clinically proven wavelength combination
• Perfect for those new to red light therapy
• Balanced red and NIR wavelengths

Specifications

• Module Type: Flat
• Compatible Hubs: M1, M2, M3 (single or multi-hub configurations)
• Wavelengths: 630, 660, 830nm (2 Red / 1 NIR)
• LED Count: 120
• Footprint Added to Hub: none — flush fit (M1 Hub + 1 Flat Module = 33 x 35cm, same as the hub alone)
• Average Irradiance (full wavelength spectrum): 64 mW/cm² at 6in / 56 mW/cm² at 12in
• Weight: 1.52kg, Dimensions: 35 x 34 x 3cm
• Power Consumption (per module, AC 220V, on an M1 hub): 210W / 0.975A
• Beam Angle: a combination of 30 and 60 degree lenses, for even light coverage of the treatment area

What’s Included

• Repair Flat Module
• Installation / user guide

Ideal For

Spas, med spas, plastic surgery offices, and commercial and at-home use.
