Switch M3 Hub

Description

The Switch M3 Hub holds three independent module bays, each with its own full power supply and user interface control. It gives you the largest single-hub treatment area on the Switch platform, with the flexibility to mix and match Flat and Wing modules across all three bays.

Each module bay on the M3 is controlled independently, without affecting the settings of the others — so different treatment protocols can run side by side in the same session.

Choose This Hub If You

• Want the largest treatment area available on the Switch platform from a single hub
• Run a clinic, gym, or shared facility and need to treat larger areas or multiple protocols at once
• Want to mix and match up to three different module types across independently-controlled bays
• Are treating full-body sessions and want maximum coverage without combining multiple hubs

Key Features

• Holds 3 Switch Modules (any combination of Flat or Wing) with independent power and control per bay
• The largest single-hub treatment area on the Switch platform
• Run multiple different treatment protocols simultaneously, side by side
• Same professional-grade, high irradiance output as the rest of the Switch range
• Compatible with a wide range of stands, from desktop to motorised
• Real-time Joules Calculator for on-the-fly dosing adjustments, per module
• Tool-free magnetic module mounting for Flat modules (see individual module pages for Wing module fitting)

Specifications

• Hub Dimensions (H x W x D, with 3 Flat modules fitted): 100.1 x 35 x 9.7cm
• Module Bays: 3 (any combination of Flat or Wing modules, sold separately)

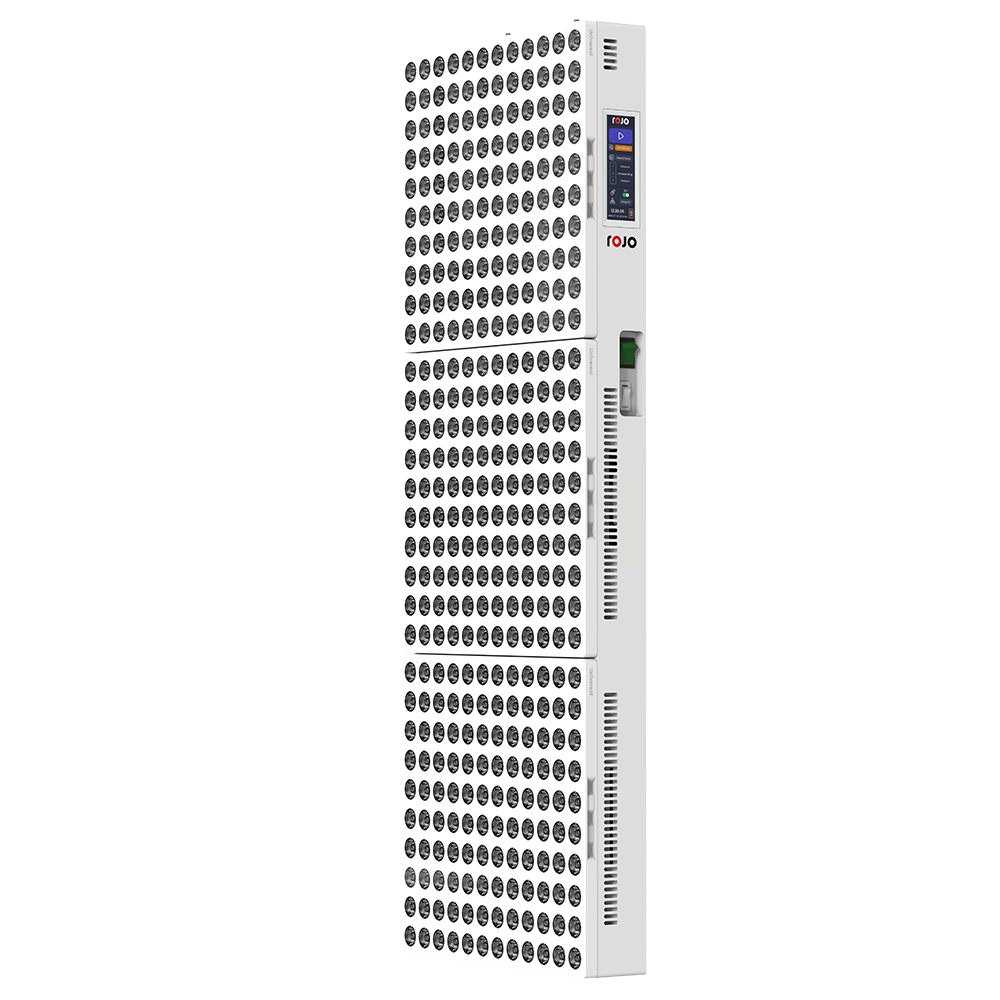

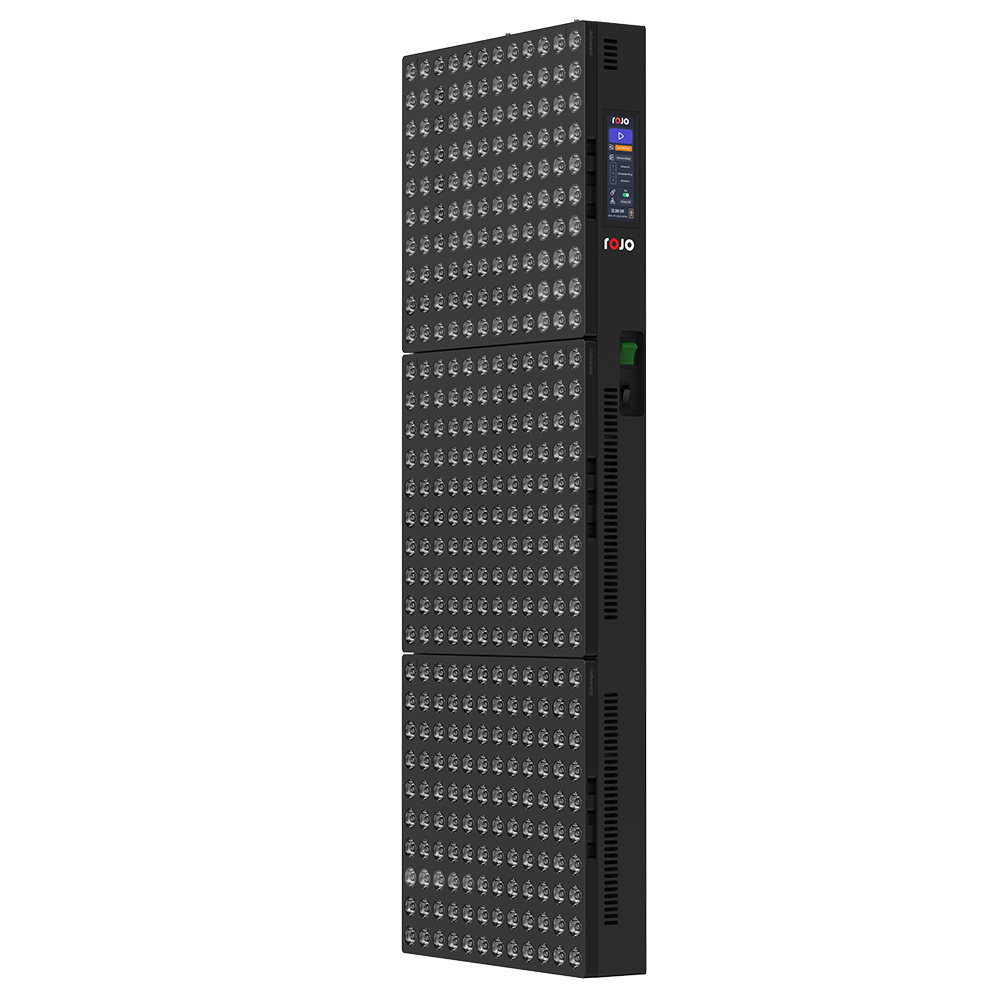

• With 3 Flat Modules fitted — Footprint: approx. 100 x 35cm, LED Count: 360
• With 3 Wing Modules fitted — Footprint: approx. 100 x 70cm, LED Count: 636 (Wing modules on multi-bay hubs mount in line vertically, not side by side)
• Compatible Stands (with any Flat or Wing module): Desk Stand, Universal Rotating Desk, Universal Rotating Floor Stand

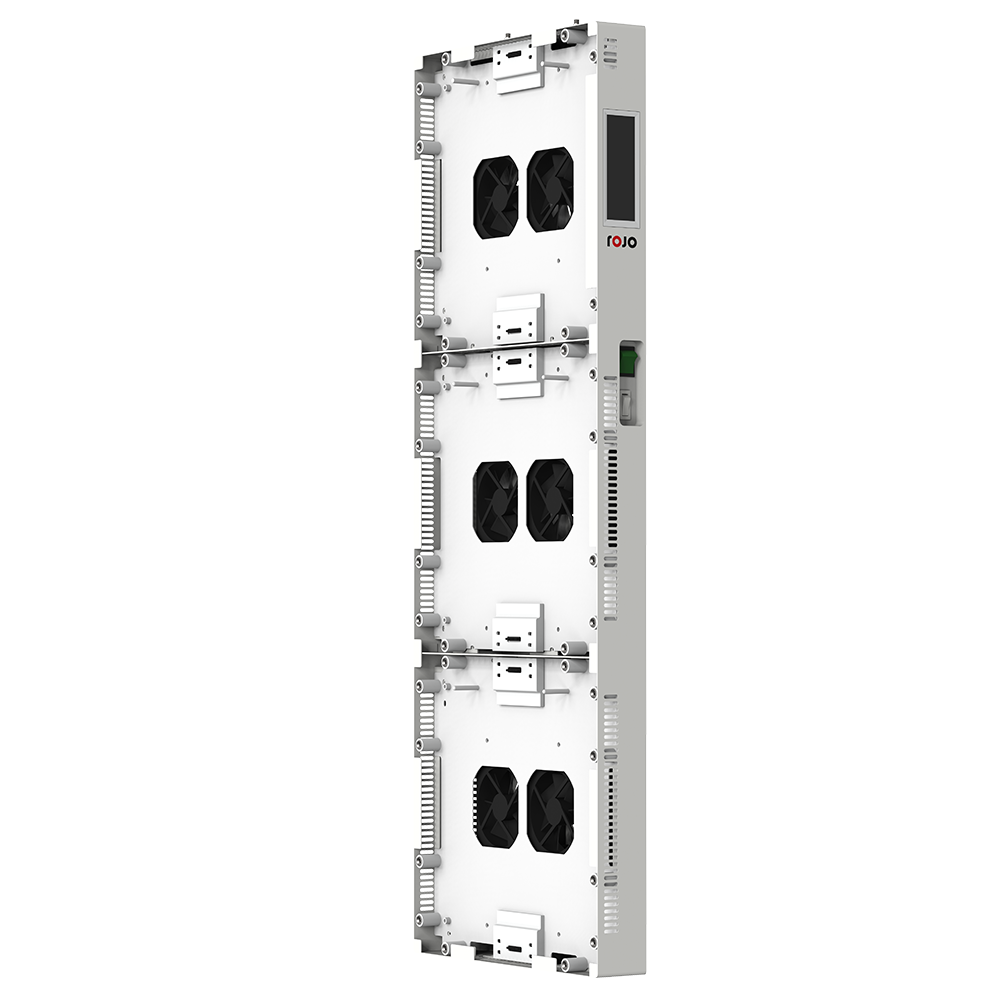

• Weight: 17.15kg / 37.73lbs (hub only, excluding modules)
• Wavelengths: dependent on modules fitted
• Power Consumption (hub with 3 modules fitted): 627W (110V) / 594W (220V)
• Current: 5.80A (110V) / 2.72A (220V)
• Noise Level: 54.1dB (measured 6in) / 52.5dB (measured 12in)
• EMF Emission: 254 v/m electric / 72nT magnetic (at 3in); 290 v/m electric / 84nT magnetic (at 4in)
• Flicker: 0.095 (at 3in) / 0.085 (at 4in)

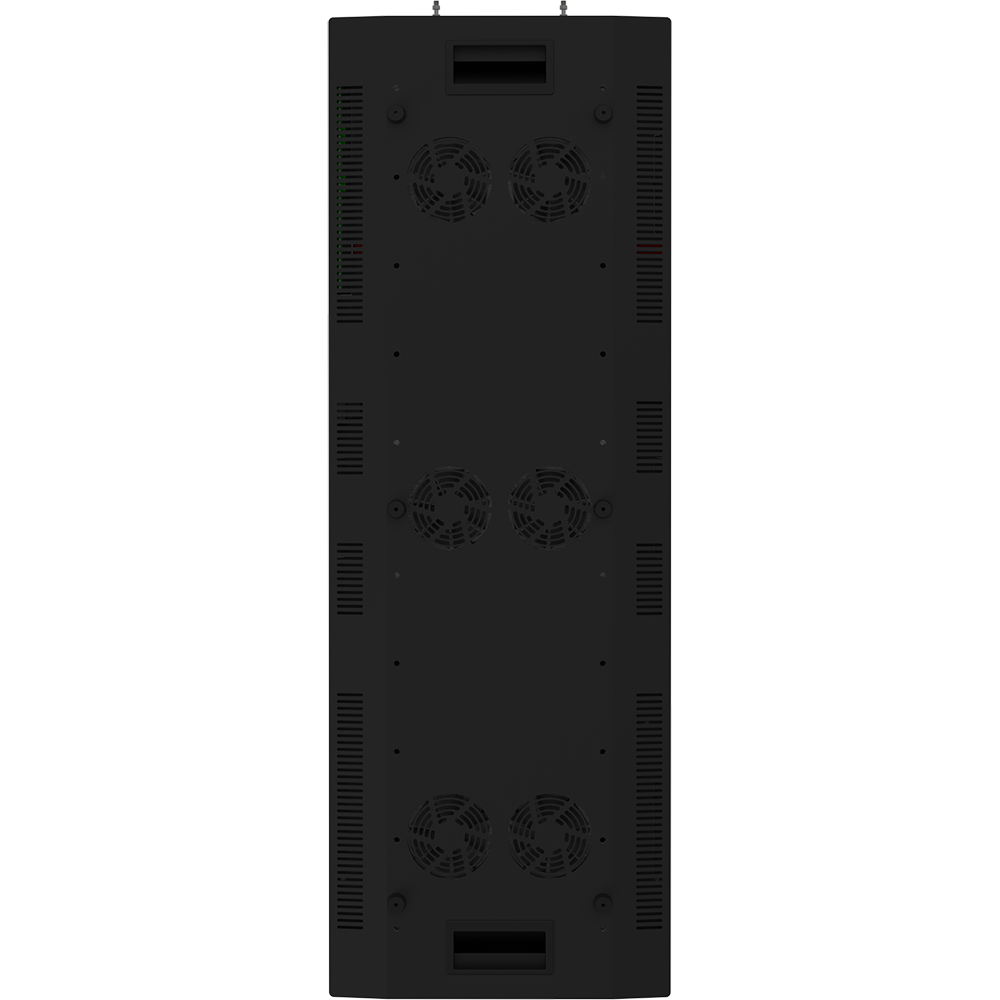

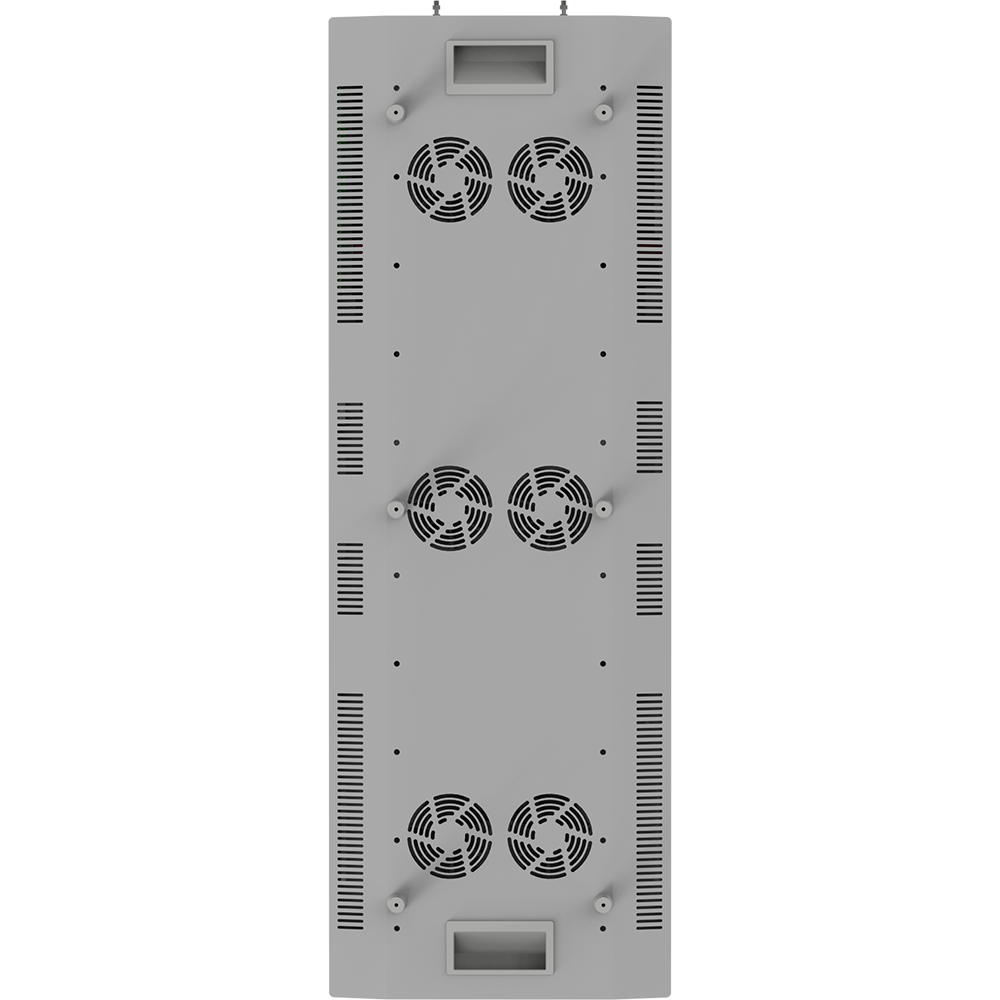

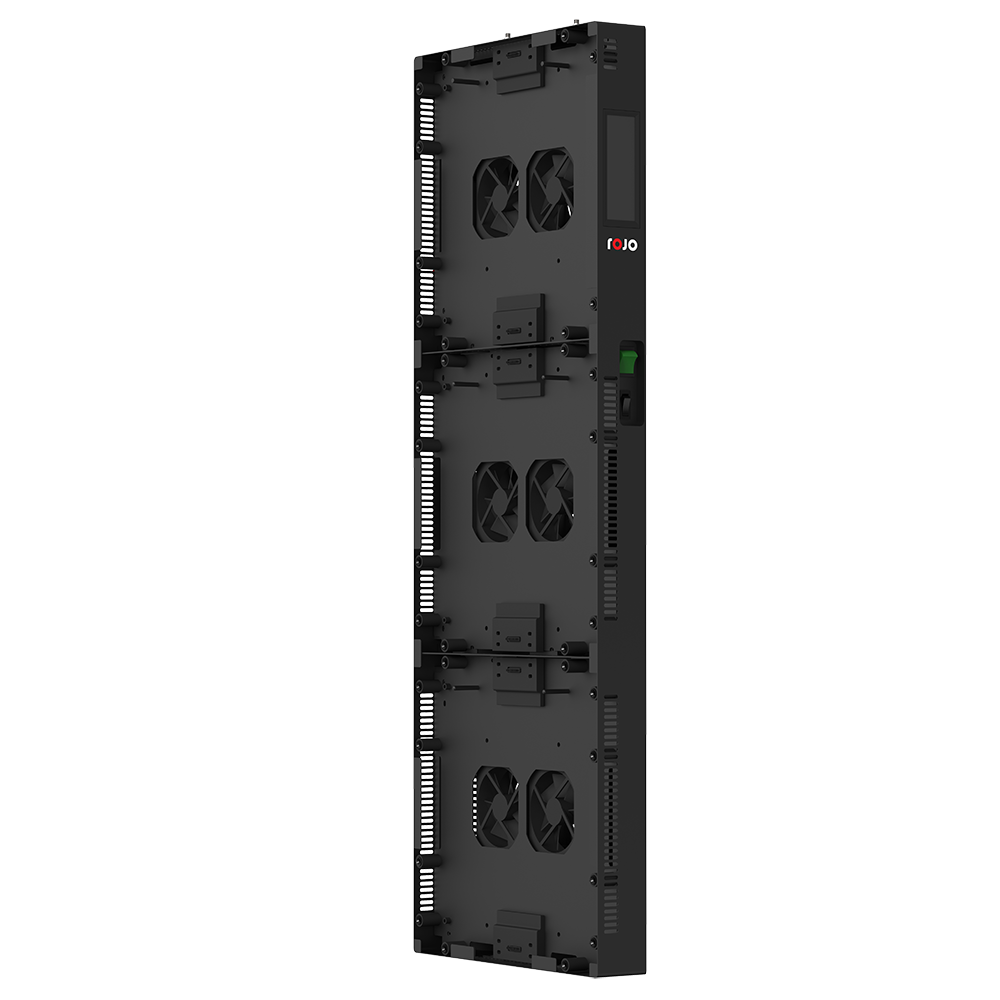

• Cooling Fans: 6

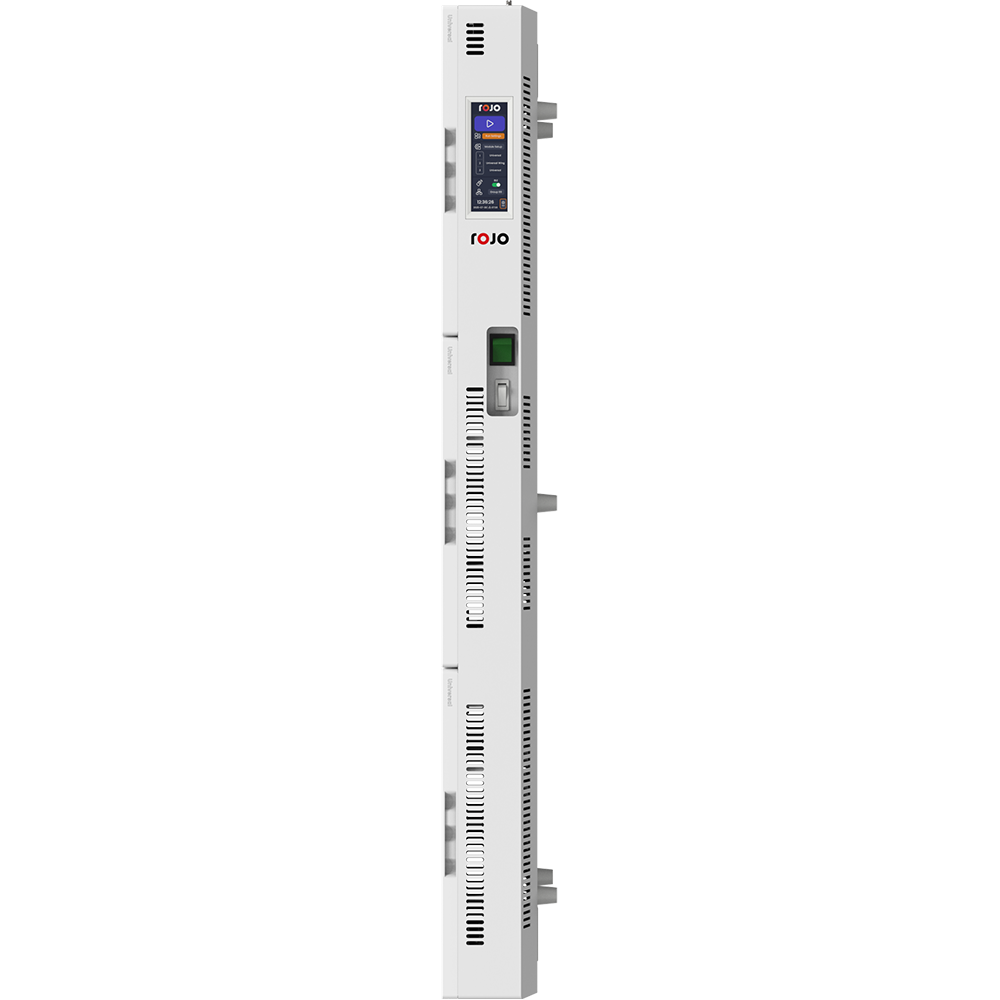

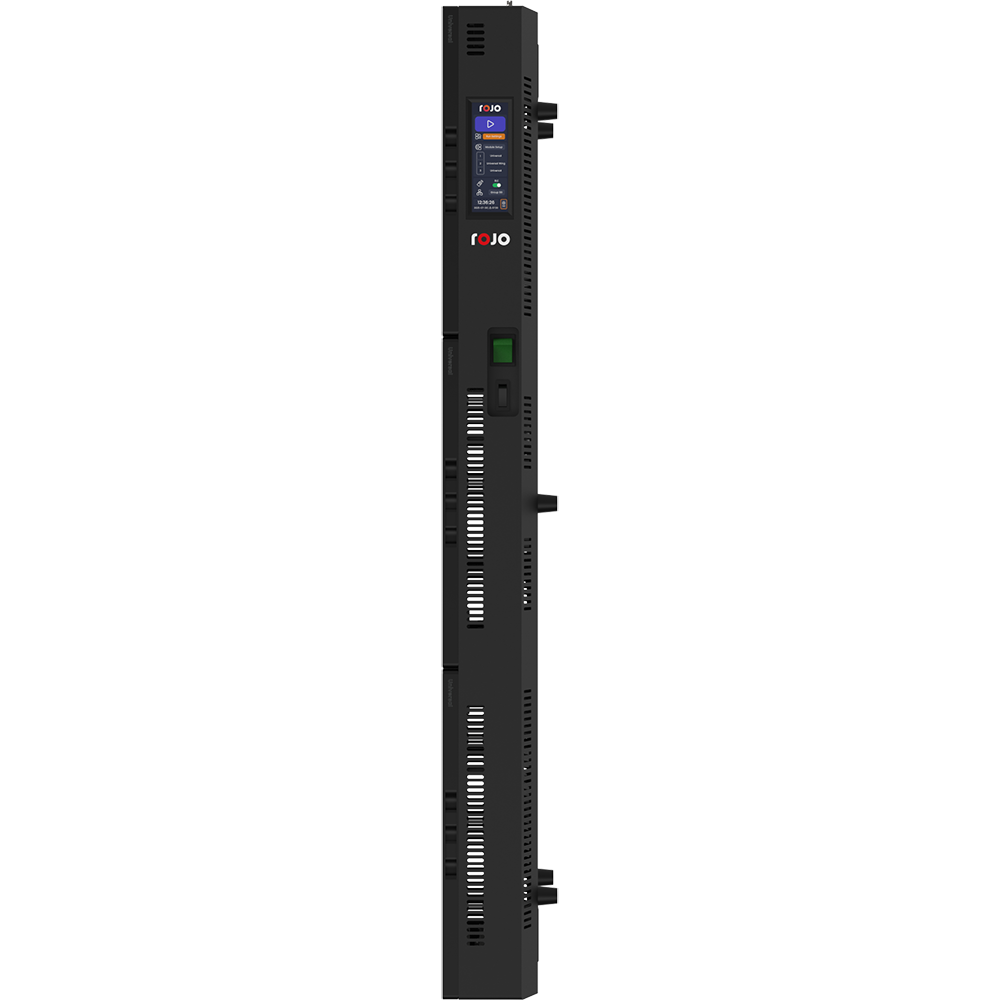

• Touchscreen Display: 11 x 3.7cm, 320 x 960px
• Beam Angle: governed by the modules fitted — every current module uses a combination of 30° and 60° lenses
• Irradiance: determined by the modules fitted (see individual module pages)

What’s Included

• M3 Hub
• Power Cable
• Power Connector (for using two panels together with one power cable)
• Remote Control
• Eye Protection Glasses
• Door Hanging Kit with height-adjustable pulley

Safety Standards

FDA Class II / ETL/UL / CE / TGA / RoHS

Ideal For

Clinics, gyms, and shared facilities running full-body sessions or multiple protocols at once, and anyone wanting the maximum treatment coverage available on the Switch platform.
